JTR speakers and subwoofers setup

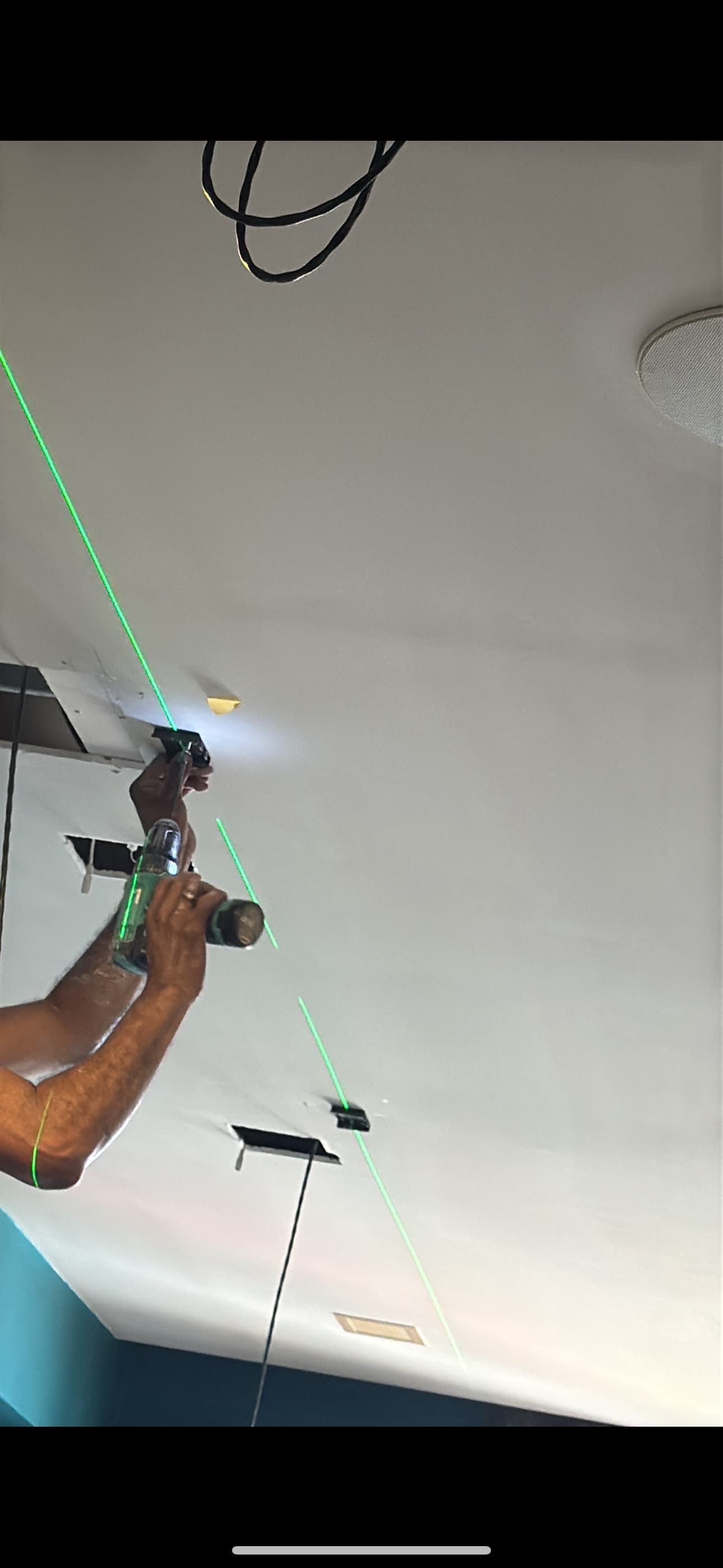

Laser align placement of the atmos speakers

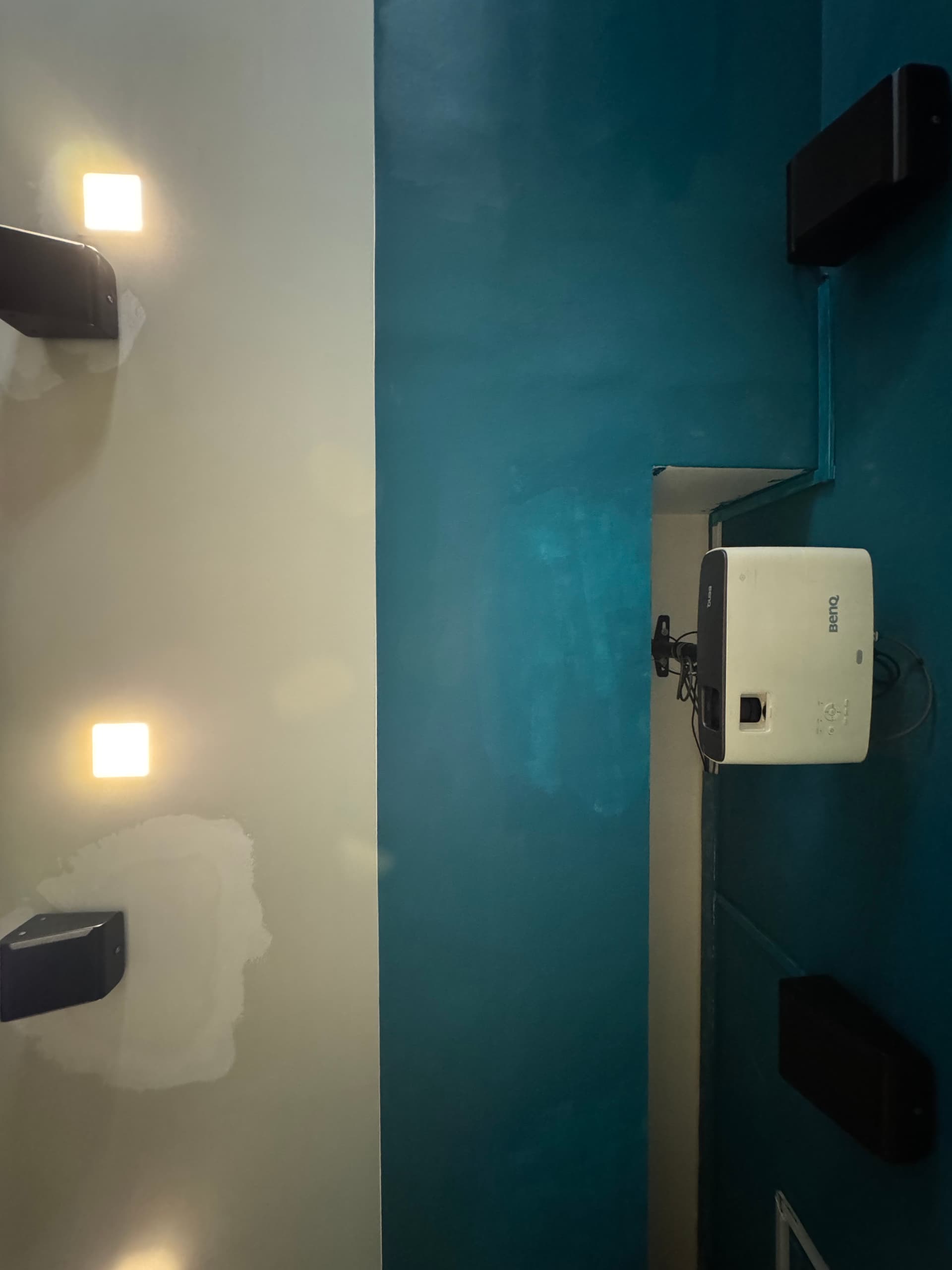

View straight up from MLP

2 Likes

Must thanks a bro Johnathan for his superb DIY works! Want as clean as possible with no cables on the ground!

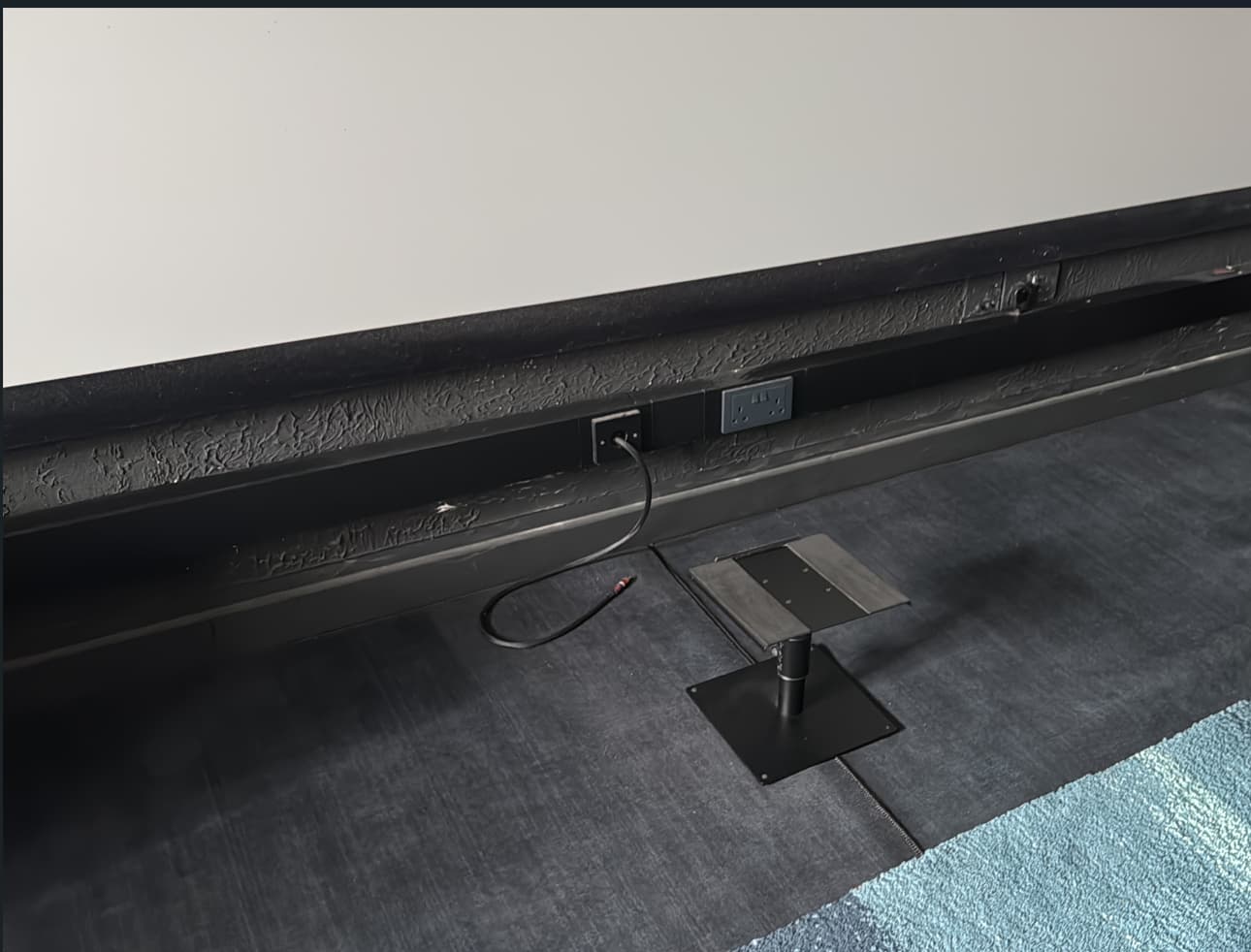

Front Stage. Ignore this stand cannot " tahan " the weight lol.

2 Likes

HoverEZE platform and NF Sub :grinning_face_with_smiling_eyes:

2 Likes

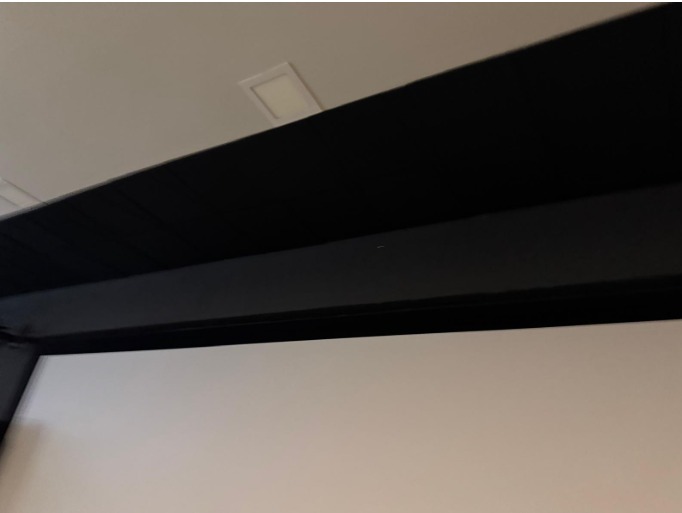

Just came going do up the Ceiling front stage.

1 Like

My belove HT signs with black velvet background signage

1 Like

Also bought aroma diffusor to freshen up HT Mood :slight_smile:

1 Like

New launch

1 Like

Wah nice. Looks good! :+1:t4:

Calibrated yet? Haha

1 Like

Only done a raw listening with volume matching.

Still waiting for custom made speaker stands to come in for proper L&R height placement and Center Tilt up positioning as not using AT screen. Then will calibrate.
The CM builder coming tomorrow for C stand checking tilting measurement. :slight_smile:

Will want to re-adjust the up front dual subs positions , measure them ab and see which is the best in\out spot from the front wall.

Not a REW expert here , learning to time align both of them first and with the 3rd sub behind MLP together after which EQ\Match Filter\Save\Load PEQ and performing ARC RC.
Take it slow :slight_smile:

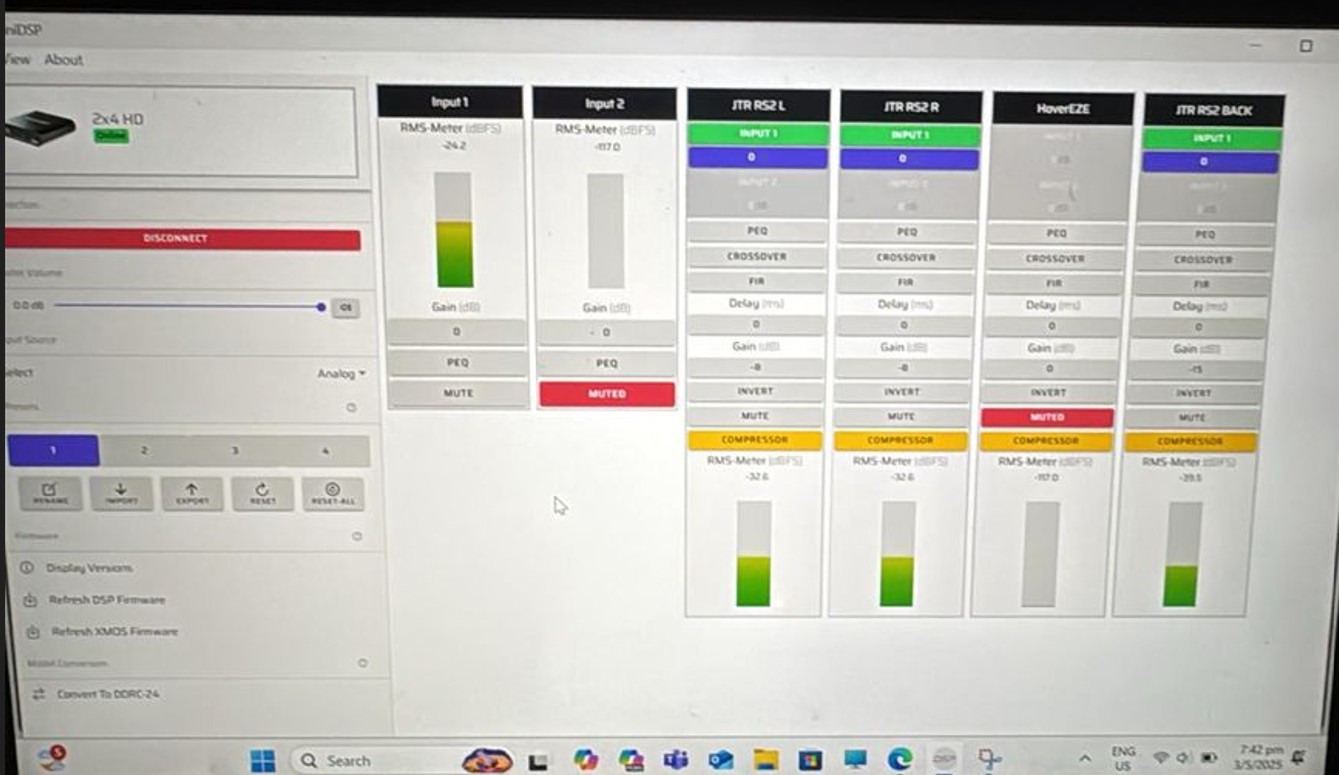

Connected via Minidsp

via input 1 with 3 identical subs.
Via input 2 for the HoverEZe platform.

Cheers.

1 Like

LoL…I am using the Hone Aroma diffuser for the past 3 weeks. Definitely you need one to “elevate” the cinematic feel :slight_smile:

1 Like

Respect to you…I will never allow myself to do that to my ceiling even in my HT room, let alone the living room :clap:

1 Like

Wa

Beo this Hone Aroma diffuser looks chio !
Hotel smell feell :slight_smile:
Agree with u bro need enhance cinematic feel environment :slight_smile: :smiling_face_with_three_hearts:

If i remember it cost around $3xx

HT always slowly convince WAF hehe :slight_smile: :hugs: :face_blowing_a_kiss:

1 Like

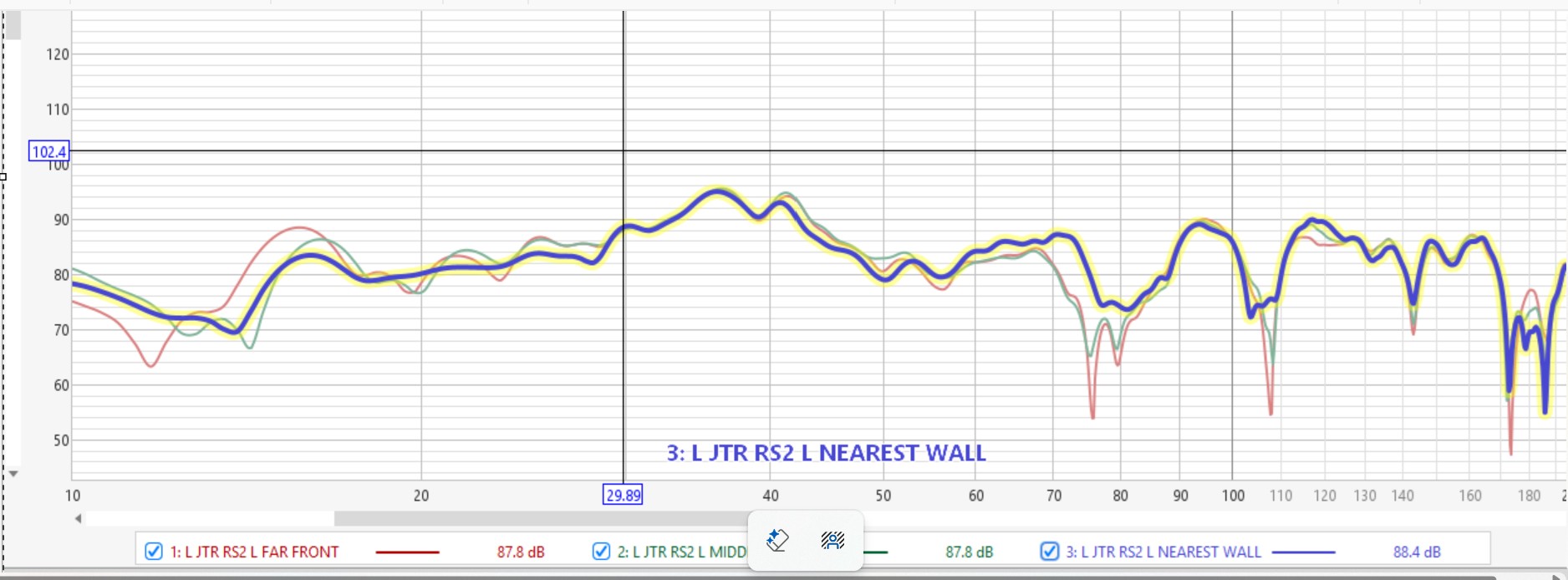

Just spent time to measure the front dual subs in 3 positions.
The sub placement is really a key.
Nearest to the Front wall boundary :slight_smile: :oncoming_fist:

2 Likes

Looks good with extension down to 10Hz…

1 Like

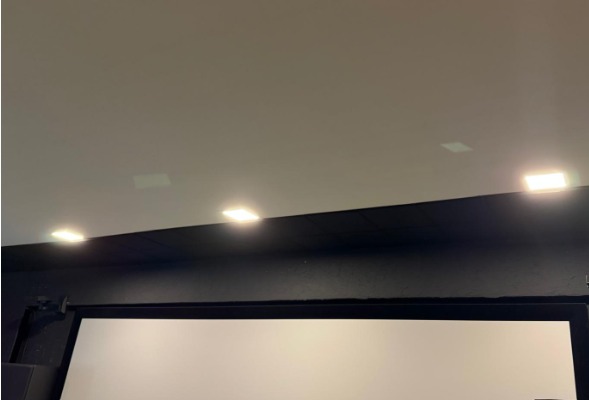

Ok Wife offered help to put up front ceiling panels.
With her help to unstick the panels, managed to paste the panels myself. It’s so much easy with these adhesive panels.

Just finished sweating..
Very happy with the results!

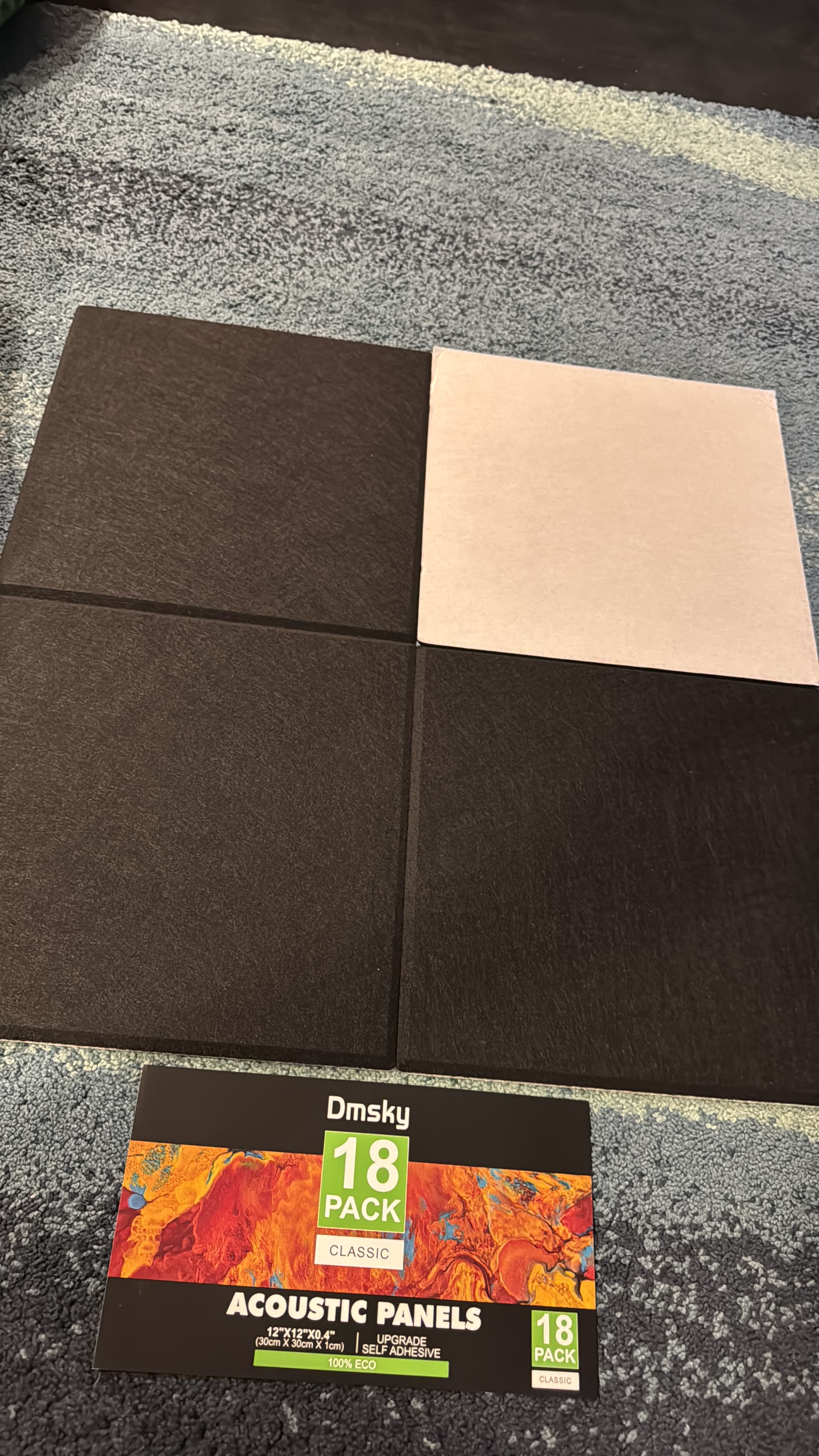

Super happy with this purchase.
Amazon.com: 18 Pack Black Acoustic Panels 12"X12"X 0.4"Sound Absorbing Panel Wall Decoration Soundproof Wall Panels High-Density Sound Deadening Panels Acoustic Treatment Panel For Home Studio : Musical Instruments

OMG now got 20% discount …!!

Best is wife and daughter said u slowly paste the entire ceiling to have cinema feel LOL

Good to see posting of rew graphs again! :laughing: Sorely missed haha… Last time in xp, it was much more frequent.

Looks like got a wide band dip 75hz - 88hz. Might be useful to try to reposition the subs (maybe the nf one) to cover that dip.

I was expecting the 15-30hz to be higher in spl organically due to the subs specs.

How’s the combined raw FR of all 3 subs?

1 Like

Wah… This hone one nice. But price is quite high sia on shopee…

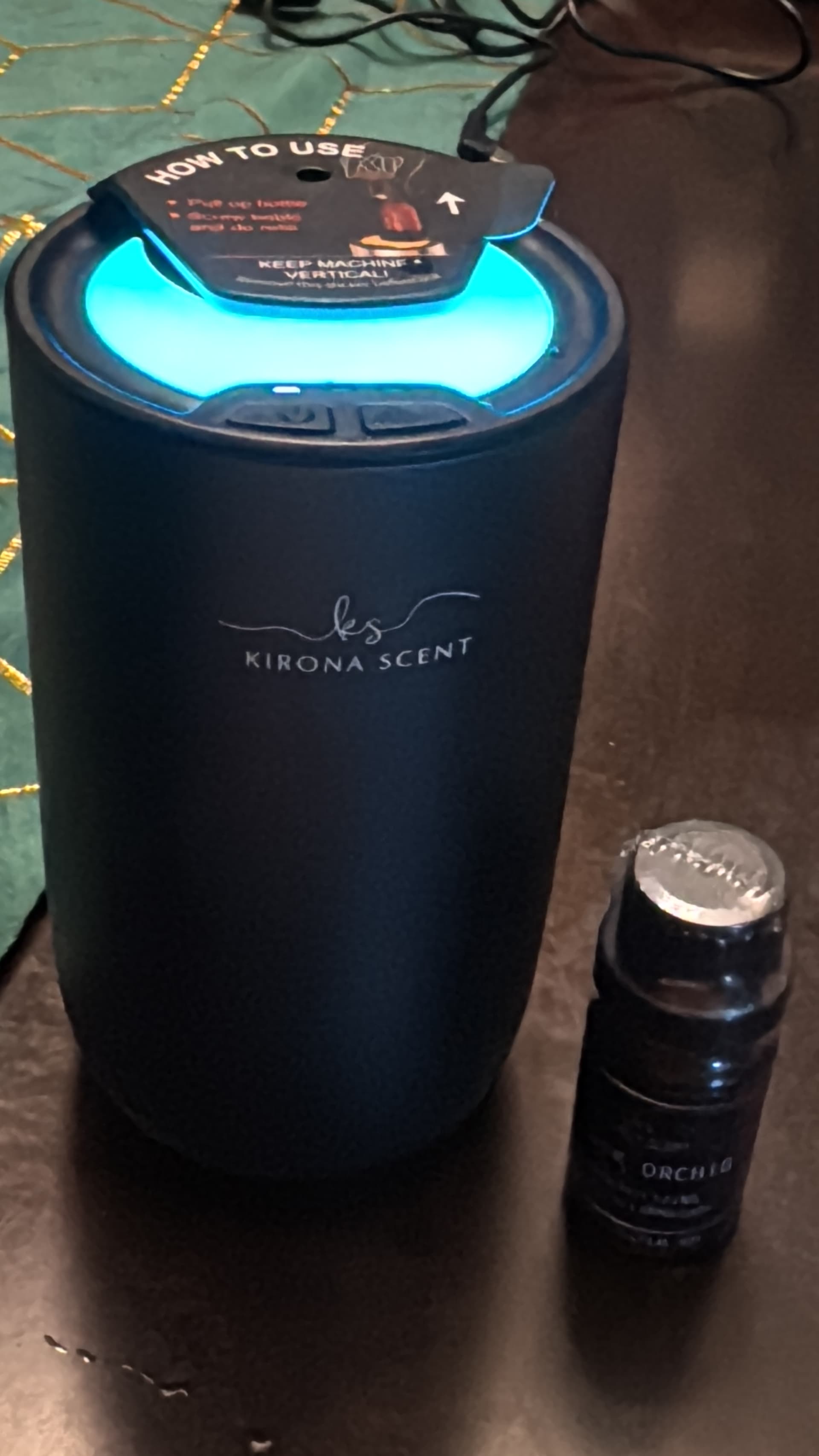

The kirona brand looks like much more affordable in price. I thinking of getting one too since u all said good for waf hahahah

2 Likes

The raw measurement graphs r with much higher peaks.

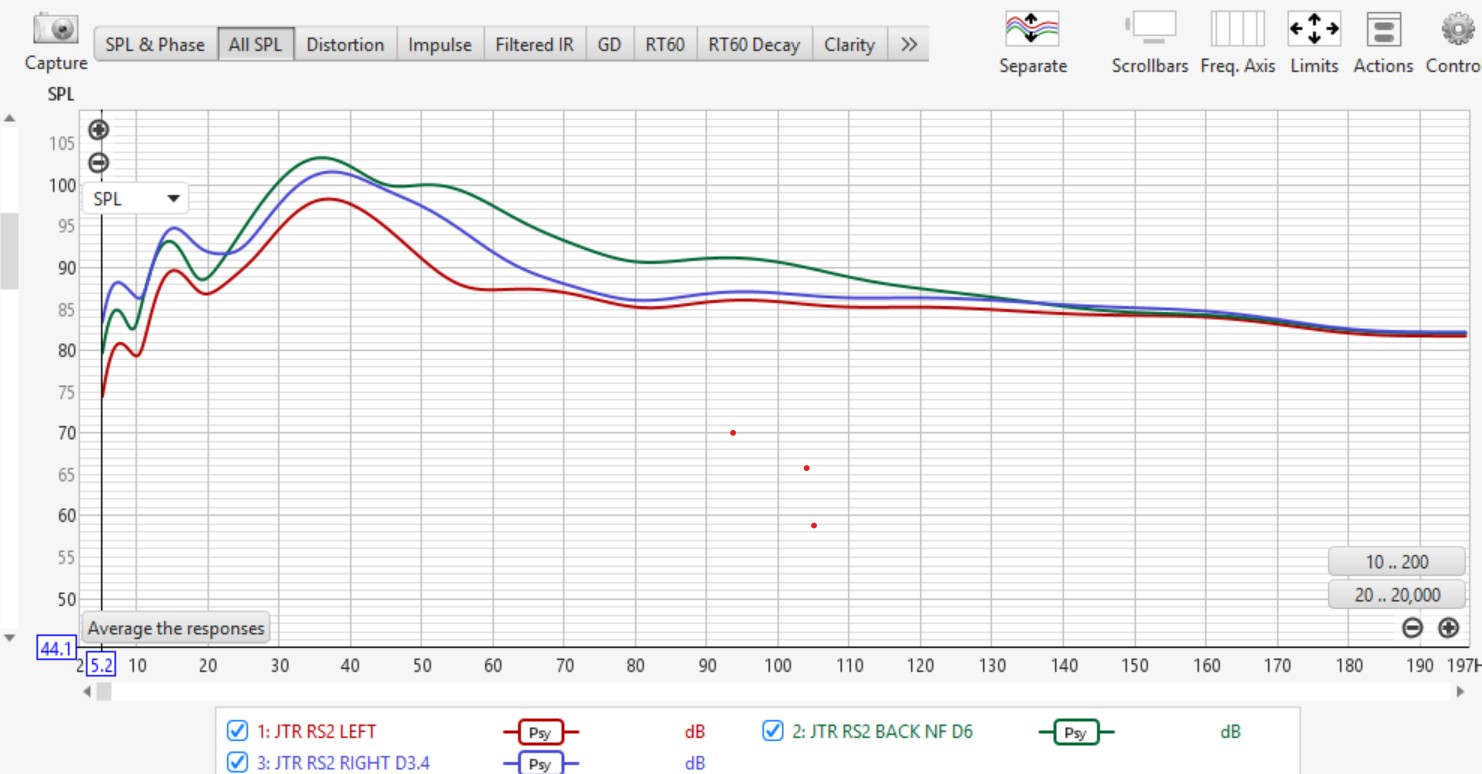

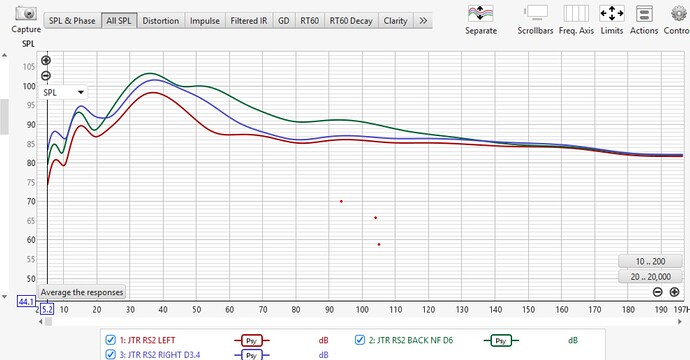

Above graph was with volume matched Pink Noise at at 85db SPL each.
(-8db down via minidsp)

Spent 1 hour+ time alignment of the 3 subs compare first 1+2 then 1+2+3 via overlay
Petty Tiring and stop lioa lol.
Applied smoothing:

PS : Still waiting for the speaker stands , which will need to fine set the sub positions slightly and remeasure again then will do up the final ARC Calibration. :slightly_smiling_face:

1 Like

MTL Hotel feel and smell bro haha WAF Sweet
